MCP Server Security: Implementing Least-Privilege Access for Copilot Studio Agents

Protecting your enterprise systems starts with limiting access. AI agents like those in Copilot Studio often interact with sensitive data across multiple platforms, from HR systems to financial databases. Without proper controls, this broad access creates serious risks – data breaches, unauthorized changes, and even system-wide compromises.

Here’s how you can secure your MCP (Model Context Protocol) server using least-privilege access principles:

• Restrict access at the data layer: Use tools like Data API Builder (DAB) to define exactly which data agents can query, down to specific columns and roles.
• Authenticate every request: Configure Microsoft Entra ID with OAuth 2.1 for token-based authentication, ensuring agents only act on behalf of verified users.
• Enforce role-based controls: Map user roles to permissions at every layer – data, tools, and APIs – to ensure agents perform only authorized actions.
• Monitor and test: Regularly review permissions, test for vulnerabilities, and log all agent activity to catch and prevent issues early.

Why it matters: Deployments that follow least-privilege access principles experience far fewer security incidents than deployments that grant agents excessive permissions.

This guide walks you through setting up these controls step by step, covering tools, configurations, and best practices to secure your AI agent deployments.

MCP Authorization: Scopes, Roles & Least Privilege in Production | Module 2.3

sbb-itb-8c52a73

Defining Access Scopes at the Data Layer

Control access at the data layer to ensure that your Copilot Studio agent only interacts with data it is permitted to handle. By limiting what the agent can access, you significantly reduce risks further down the line.

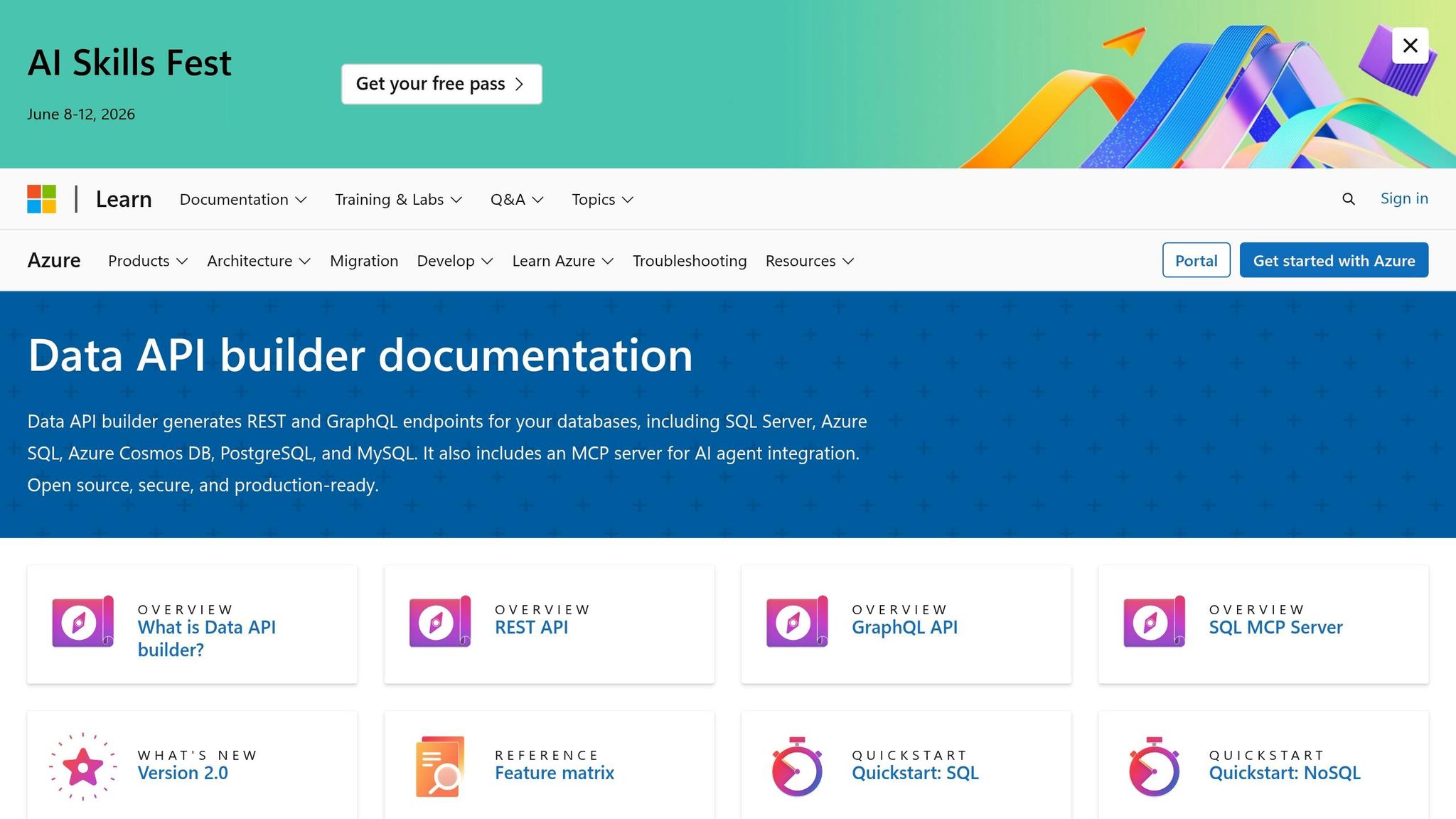

Using Data API Builder SQL MCP to Set Custom Data Scopes

Data API Builder (DAB) acts as a middle layer between your database and MCP, transforming raw tables into configurable entities. Through the dab-config.json file, you can control which tables, views, and stored procedures are exposed, set permissions, and even alias internal column names to keep your schema hidden.

A standout feature of DAB is field-level security, which allows you to restrict access to specific columns based on roles. For instance, a sales agent role could be barred from viewing sensitive fields like employee_salary, even if those fields exist in the same table being queried. DAB uses a structured "NL2DAB" model to generate precise T-SQL queries, avoiding the unpredictability of natural language-to-SQL generation.

To reduce vulnerabilities, avoid generic tools like query or execute. Instead, rely on specific, predefined tools to limit the attack surface effectively.

Mapping Business Roles to Data Scopes

After defining entities in DAB, the next step is linking Microsoft Entra ID roles or security groups to those database-level permissions. This ensures that the data visible to users aligns with their organizational role, rather than what the agent technically has access to.

A practical solution is to establish tool registries tailored to specific business units. For example:

• A "Finance Registry" might expose only revenue and invoice data.
• An "HR Registry" could focus solely on organizational charts and headcount information.

On the database side, assign the MCP server’s service principal to SQL roles like db_datareader. This enforces security at the data layer, independent of the application layer. TeamCentral’s Central AI Hub streamlines this process by applying role-based access controls at the hub level, ensuring governance is centralized rather than dispersed across individual connectors.

These defined data scopes also inform access policies in other connected systems.

Limiting Exposure in Connected Systems

In addition to configuring DAB, there are additional measures to minimize exposure risks. Start with read-only database logins as a default. For instance, Microsoft MCP Server for Enterprise supports read-only operations during initial deployments, which is a sensible default unless write access is absolutely necessary. For Azure-hosted MCP servers, use Managed Identity (DefaultAzureCredential) for outbound database authentication. This approach removes the need for static credentials in configuration files entirely.

To further secure your setup, place Azure API Management in front of your MCP server. This allows you to validate JWTs, enforce policies, implement rate limiting, and perform audit logging. The table below highlights key techniques and their benefits:

Finally, never forward an inbound client token to upstream APIs. Instead, use token exchange (RFC 8693) to generate a separate, short-lived token specifically for the upstream resource. Forwarding the original token not only bypasses server-side controls but also undermines your audit trail – a critical security misstep.

Setting Up Authentication for MCP Servers

Once your data scopes are defined at the DAB layer, the next step is ensuring every MCP request operates under a verified user identity instead of relying on a generic service account.

Configuring End-User Authentication with On-Behalf-Of Flow

Authentication needs to handle two aspects: the inbound user request and the outbound call to downstream APIs. For inbound requests, your MCP server must receive a valid Microsoft Entra ID bearer token in the Authorization header, with the Mcp.Tools.ReadWrite scope. Using the On-Behalf-Of (OBO) flow, the server exchanges the user token for a downstream-scoped token, allowing the agent to act as the user rather than as a generic service principal. This approach enforces least-privilege access by ensuring agents operate strictly within the permissions granted to the user. In Copilot Studio, this setup involves configuring authentication as OAuth 2.0, manually enabling the on-behalf-of login option in the custom connector’s security settings within Power Apps.

For this to work, your MCP server app registration in Entra ID must be set up as a confidential client with an exposed API scope formatted as api://{client-id}/mcp-access. To streamline operations and avoid consent prompts disrupting agent workflows, pre-authorize known client IDs, such as your Copilot Studio connector, in the "Expose an API" section of the app registration.

In production environments, replace client secrets with Federated Identity Credentials tied to a Managed Identity. This eliminates the need for secret rotation and reduces the risk of credential leaks in configuration files.

Validating MCP Server Authentication Tokens

Once tokens are in use, your server must validate them for every incoming request. Ensure the token’s audience matches your client ID, the issuer matches your tenant, and the token has not expired.

Microsoft Entra ID encodes scopes in either the scp claim (as a space-separated string) or the roles claim (as an array), depending on how your app registration is configured. Your validation logic should account for both formats.

To optimize performance, cache the JWKS (JSON Web Key Set) for one hour, reducing lookup latency to under 1 millisecond. Additionally, add a 5-minute buffer when checking token expiration before initiating an OBO exchange. This precaution helps prevent race conditions where a token might expire during the exchange, causing downstream calls to fail silently. This aligns with the same risk-mitigation strategies applied at the data layer.

"Always validate the incoming token’s expiry before OBO exchange. We added a 5-minute buffer to prevent race conditions where the token expires mid-exchange." – Juan Burckhardt, Principal Software Engineer, Microsoft

Your server should also implement the /.well-known/oauth-protected-resource endpoint as outlined in RFC 9728. This allows MCP clients to automatically discover your server’s authorization requirements without requiring manual configuration.

Once token validation is in place, the focus shifts to securing administrator permissions.

Applying Least-Privilege to Admin Roles

Strict token validation principles should extend to administrative roles. Use Conditional or Cloud Application Administrator roles instead of Global Administrator when creating access policies. These roles provide the necessary permissions to configure settings while minimizing the risk to your tenant if credentials are compromised.

The impact of this approach is clear: organizations that limit AI agent permissions to the least-privilege level report a 17% security incident rate, compared to 76% for deployments with over-privileged access.

To ensure OBO flows function smoothly, grant admin consent for required Graph API scopes (e.g., User.Read, Files.Read) at the app registration level. This avoids broken consent dialogs during agent execution. Assign only the directory roles that correspond to the agent’s specific Graph operations, avoiding broader permissions than necessary.

Configuring Role-Based Controls for Copilot Studio Agents

Building on the MCP server authentication and data-layer scopes discussed earlier, it’s crucial to enforce strict role-based controls for Copilot Studio agents. This ensures that agents only access and perform actions aligned with the permissions granted to their users.

Connecting Agents to Governed MCP Endpoints

When linking a Copilot Studio agent to an MCP server, always route requests through a governed endpoint to avoid direct exposure. Tools like TeamCentral’s Central AI Hub provide secure MCP endpoints, acting as intermediaries between agents and enterprise systems. This setup ensures that access policies are applied before any data reaches the agent.

For custom connector configurations in Power Apps, include the property x-ms-agentic-protocol: mcp-streamable-1.0 in your Swagger definition. This enables proper interaction with the agentic protocol. Additionally, use Managed Identity in place of client secrets to eliminate the need for secret rotation. If your organization enforces strict Data Loss Prevention (DLP) policies, create the custom connector in a Developer or Sandbox environment to avoid being blocked by default environment-level restrictions.

This AI-ready infrastructure choice ensures a strong foundation for implementing role mappings and tool-level restrictions across all layers.

Defining Role-Based Access Across Layers

Role enforcement must occur at the identity layer rather than relying on the agent’s reasoning. Map Entra ID roles directly to data and tool permissions at every layer the agent interacts with, following the mappings from earlier authentication and data-layer configurations.

A three-tier role model is effective for most enterprise deployments:

At the data layer, Entra ID roles align with SQL roles enforced through Data API Builder and TeamCentral hub-level access policies. These policies define which enterprise systems each role can query. At the MCP layer, the ListTools handler ensures that available tools match the authenticated user’s permissions. For instance, a read-only user wouldn’t even see tools that allow write or delete actions. This alignment ensures the agent’s actions are tightly controlled by its permissions.

Once these role definitions are in place, refine individual tool access to enforce even more granular permissions.

Scoping Tools and Actions by Role

The March 2025 MCP specification introduced tool-level hints – such as readOnlyHint, destructiveHint, and idempotentHint – which gateways and servers can use to automatically restrict high-risk actions based on roles. To implement this:

• Tag each tool in the MCP server definition with the appropriate hint.
• Configure your gateway or enforcement layer to block tools marked destructiveHint: true for roles below Admin.

To simplify management, separate write and delete operations into distinct, scoped tools. This way, revoking write access doesn’t require a complete overhaul of the tool manifest. With an estimated 70% of enterprise AI agents currently exceeding the access levels of equivalent human roles, implementing tool-level scoping is a critical step in reducing risk and maintaining control.

Testing and Validating Least-Privilege Access

Setting up role-based controls and tool-level scoping is only half the battle; the real challenge lies in ensuring they function as intended. While configurations may look correct on paper, real-world scenarios often reveal flaws. Structured testing helps uncover these issues early. Below, we’ll walk through how to validate and monitor least-privilege access controls throughout your MCP deployment.

Building Test Cases for Access Validation

To ensure your access controls are airtight, you need both positive and negative test cases. Positive tests verify that an agent can perform its assigned tasks, while negative tests ensure it cannot access anything beyond its scope – including tools it shouldn’t even see in the list_tools manifest.

A well-rounded test matrix should include the following categories:

In addition to these tests, validate argument-level constraints. For example, confirm that a file_read tool enforces directory restrictions. Also, run a quarterly "kill switch" test by revoking an agent’s identity and verifying that it stops functioning immediately.

Using Logging to Monitor MCP Traffic

While testing catches issues during deployment, logging is essential for identifying problems that arise later. Gateways should produce structured JSON logs for every tool call. These logs should capture key details such as the agent identity, tool name, full argument set, policy result (ALLOW, DENY, or DOWNGRADE), the specific rule ID triggered, and latency in milliseconds.

Including the rule ID is crucial for debugging. If a call is denied, you need to pinpoint the exact policy responsible. Pair this with a unique run_id for each agent session, enabling you to trace the sequence of tool calls during a specific task.

"The security layer belongs at the gateway, not the application. When authorization lives in the MCP server, every server has to reimplement it." – Mehmet Hilmi Emel, Software Engineer

To monitor agent behavior, establish a baseline during the first two weeks of production. Track patterns like call frequency, resource access, and active hours. Set alerts for unusual activity, such as spikes or access attempts during off-hours. Managed MCP gateway logging typically adds less than 10ms of latency per tool call, ensuring performance remains unaffected.

Running Periodic Access Reviews

Access controls can drift over time as tool definitions change and agents accumulate broader permissions. Data shows that organizations with over-privileged AI deployments experience a 76% security incident rate, compared to just 17% for those using least-privilege access. This gap grows wider the longer access reviews are neglected.

Conduct formal quarterly reviews to ensure everything remains aligned. Focus on three key areas:

• Confirm that each agent’s permissions still match its current task scope.
• Check for server-side tool updates that may have introduced new capabilities without notice.
• Run the "kill switch" test to verify that identity revocation works flawlessly.

Maintain a versioned agent registry to quickly identify mismatches between declared permissions and live tool definitions. The March 2025 MCP specification introduces annotations like readOnlyHint, destructiveHint, and openWorldHint, offering a structured way to assess tool risk levels during reviews.

Conclusion and Next Steps

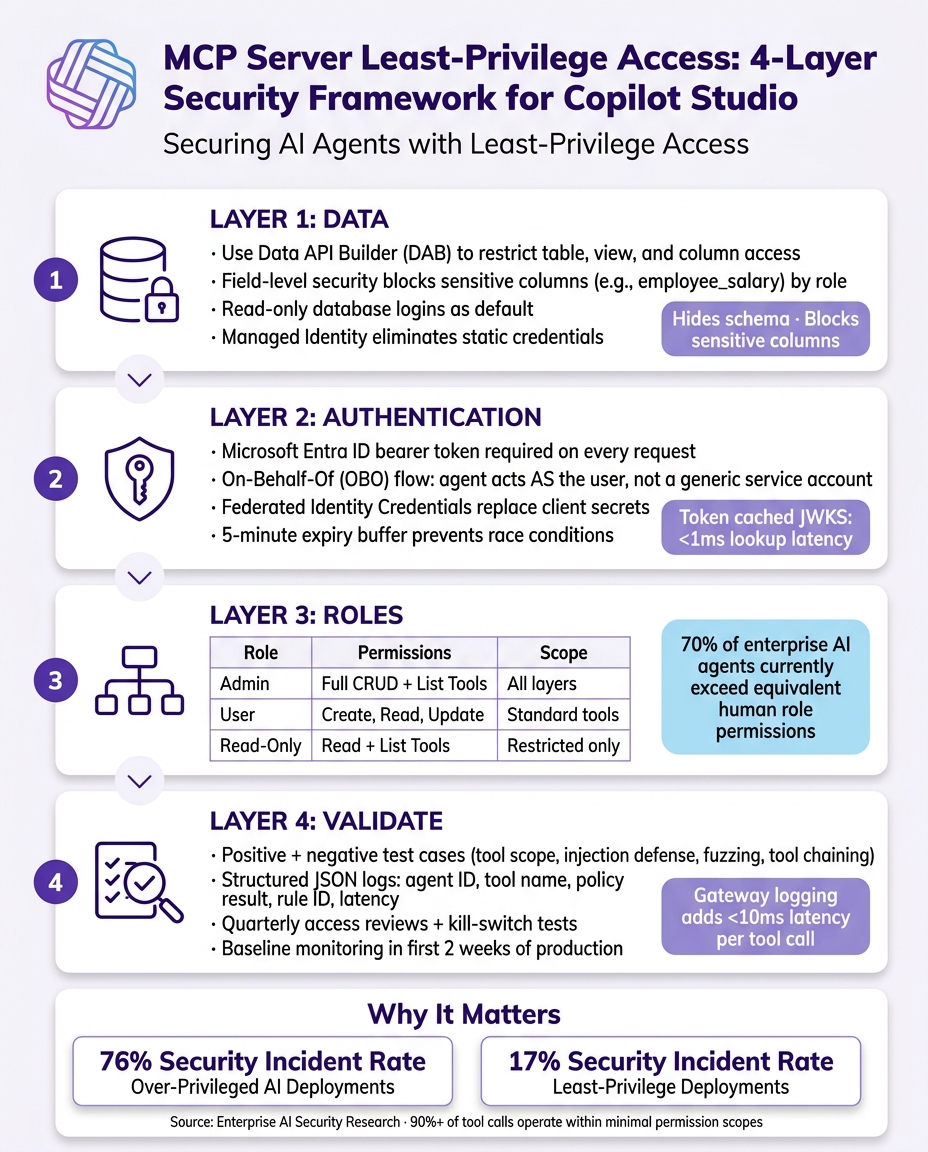

Securing a Copilot Studio agent deployment involves a multi-layered approach that combines data access, identity verification, and runtime controls. This guide has outlined the specific steps to implement each layer effectively.

Key Takeaways

The process begins with defining access scopes at the data layer. Tools like Data API Builder ensure agents only access the data necessary for their tasks. Next, authentication is configured using OAuth 2.1 with PKCE, leveraging Microsoft Entra ID to handle identity verification and issue short-lived tokens with a 5-minute buffer. This minimizes the risk if a token is compromised. Role-based controls then align token claims with specific actions, ensuring agents with restricted permissions, such as read-only access, cannot perform unintended operations. Finally, structured testing and logging validate that these controls function correctly under real-world query conditions.

"Least privilege isn’t optional. It’s essential. Build it in from the start." – Ali Elborey, Agentic AI Specialist

Research indicates that over 90% of tool calls can operate effectively within minimal permission scopes, with policy evaluations introducing less than 10ms of latency. This demonstrates that tightening access controls does not compromise agent performance.

For additional technical and compliance insights, the following resources provide detailed guidance.

Recommended Resources

For deployments that integrate data from platforms outside the Microsoft ecosystem – such as NetSuite, Salesforce, or Shopify – TeamCentral’s Central AI Hub provides pre-configured MCP endpoints. These endpoints enforce role-based access controls at the hub level, eliminating the need for custom API configurations for each connected system.

FAQs

How do I decide what data my agent can access?

To manage data access effectively, start by defining access scopes directly at the data layer. Pair these scopes with role-based controls to ensure visibility is restricted according to user permissions. Each agent should have unique credentials, with a default policy of denying access unless explicitly permitted. Clearly specify which tools and data sources each agent is allowed to use.

For an added layer of control, implement capability tokens that grant precise, temporary permissions. These tokens should have short lifespans, ensuring limited access that aligns with specific tasks. Finally, enforce these policies using a gateway that validates every tool request against the pre-defined access scopes. This approach ensures a secure and tightly controlled data environment.

When should I use On-Behalf-Of vs a service principal?

When deciding between On-Behalf-Of (OBO) and a service principal, consider the context of your task:

• On-Behalf-Of (OBO) is suitable when the MCP server must perform actions on behalf of a specific user. This approach is ideal for scenarios where user-specific permissions are required to access downstream resources.
• Use a service principal when authentication needs to occur independently of any user. This is commonly used for system-level operations or machine-to-machine communication, where the server or agents require their own identity and permissions to complete tasks.

What should I log to prove least-privilege is working?

To ensure least-privilege access for MCP server security, it’s essential to log detailed information about policy decisions and tool interactions. These logs should include key details such as the tool name, scope, resource, user ID, decision (allow or deny), reason, rule ID, and a timestamp. By correlating these logs with traces using run IDs, you can verify that access controls are functioning correctly during actual queries.

Make it a habit to regularly review the logs. Pay close attention to denied calls, high-risk runs, and pending approvals. This ongoing review process helps ensure that access controls remain effective and aligned with security policies.
